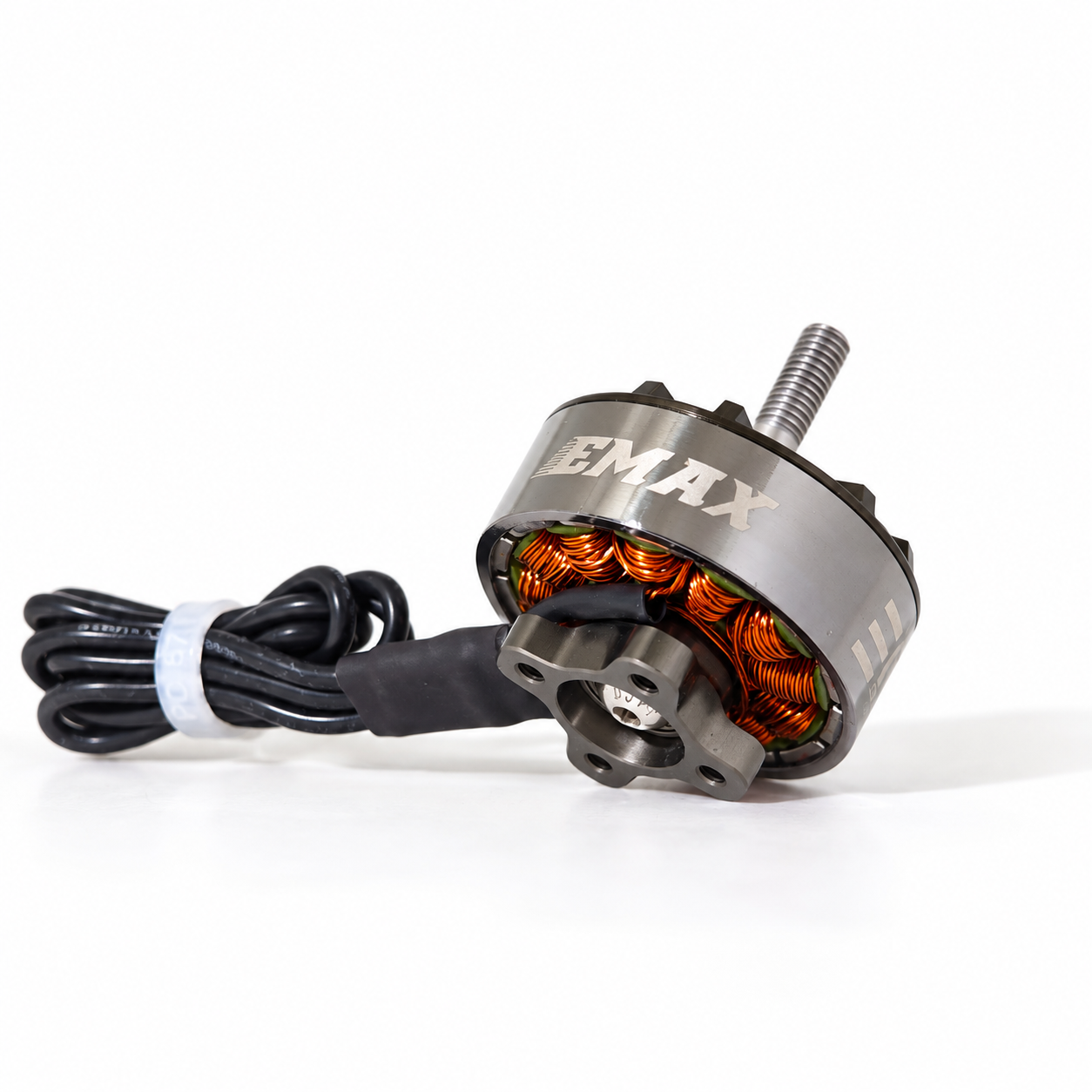

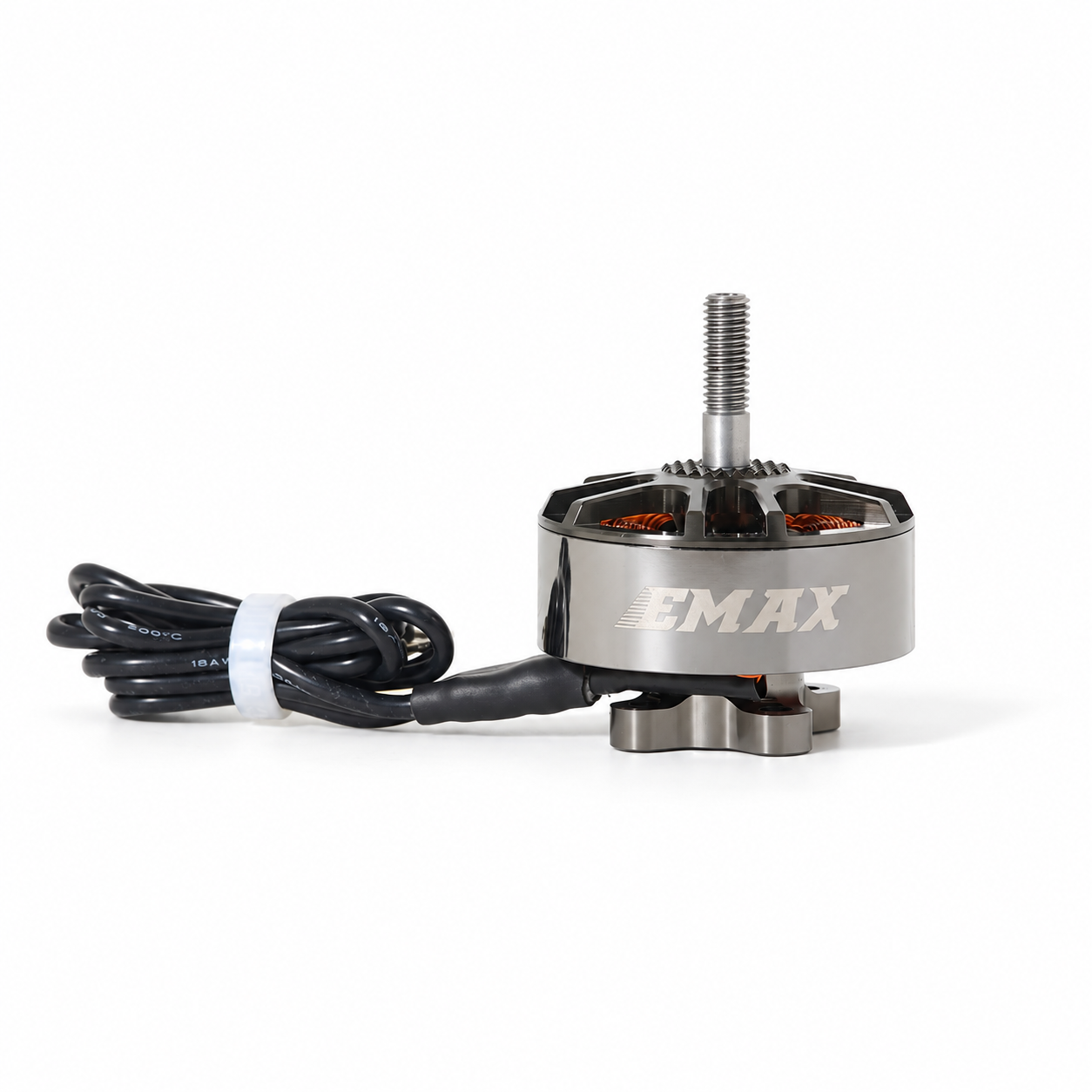

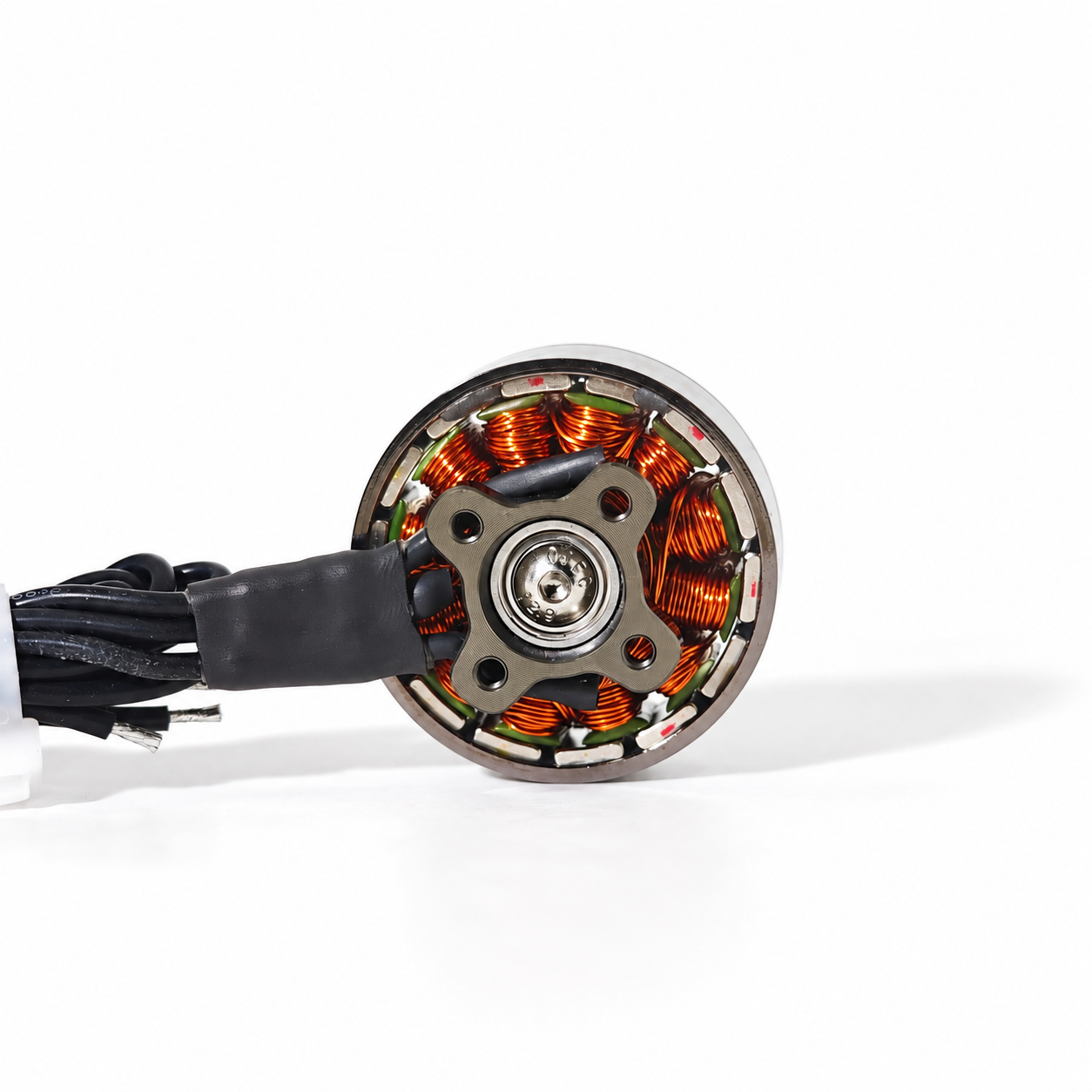

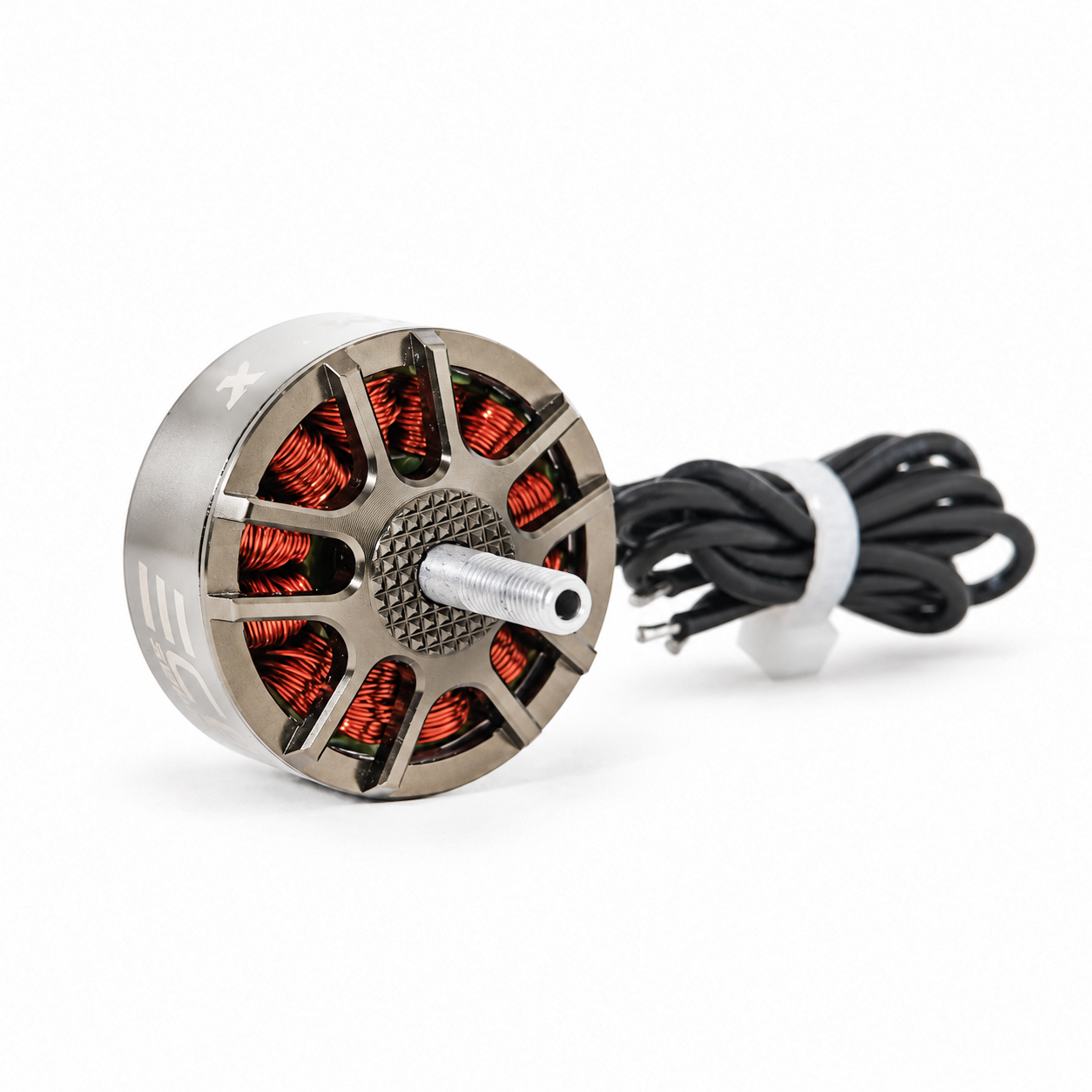

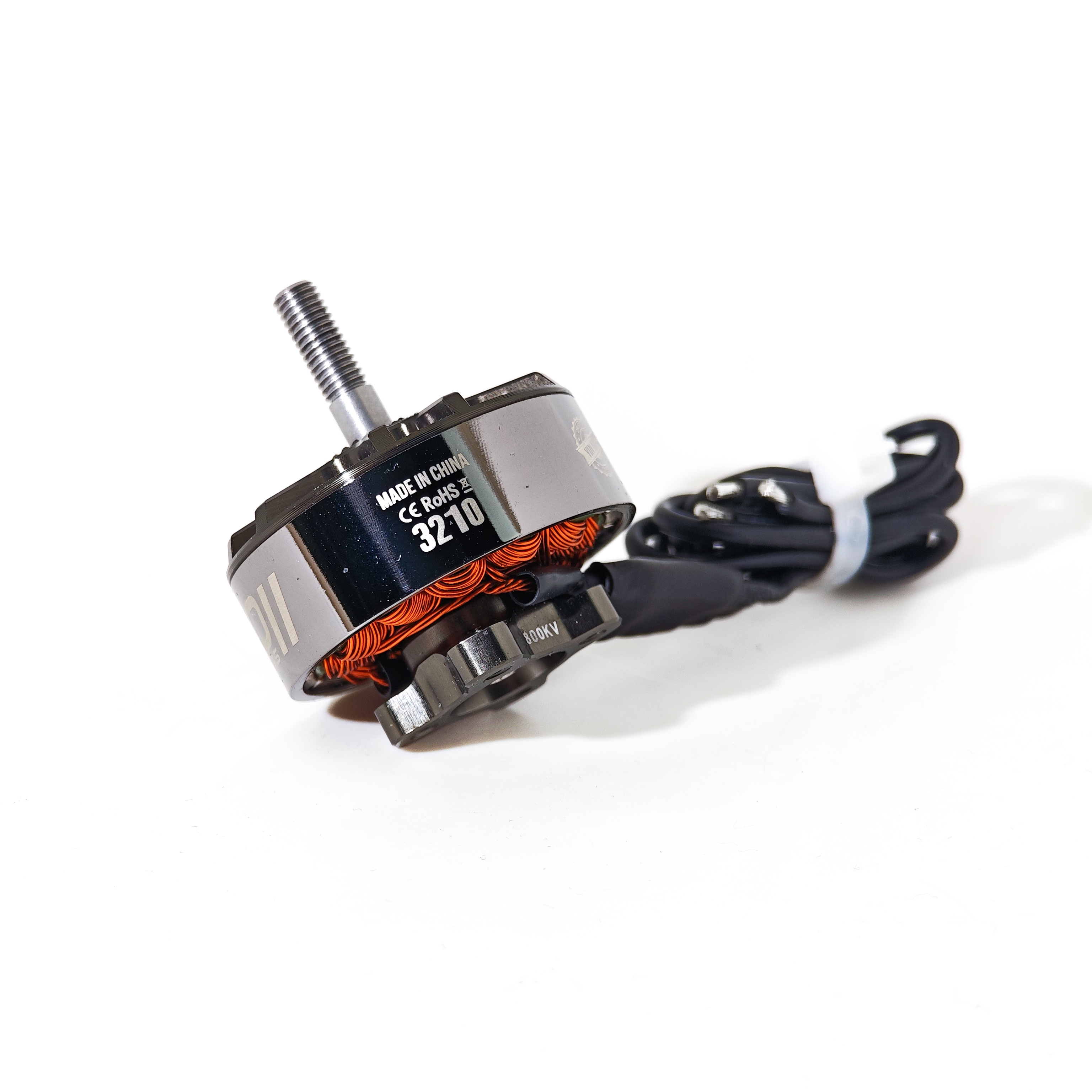

The ECOII-3210 brushless motor comes in four KV variants: 800KV, 900KV, 1050KV and 1200KV. It measures Φ39.1×45.8mm and weighs 99g including wires. Built with a 12N14P magnet structure, precision bearings and a steel shaft for reliable performance.
- 800KV & 900KV: compatible with 6–8S LiPo, for 8–10 inch propellers
- 1050KV & 1200KV: compatible with 6S LiPo, for 8–9 inch propellers
It uses multi-strand winding and 270mm 18AWG silicone wire to deliver smooth power output. Suitable for fixed-wing aircraft and FPV carrier planes. Pilots can select the right KV to match their airframe and battery setup.
Feature
Precision bearings and steel shaft for smooth rotation and longer service life
Anodized metal surface for corrosion resistance and premium finish
12N14P magnet structure for stable power delivery
19×19mm, 4×M3 mounting hole pattern, compatible with most airframes
M5 CW threaded prop adapter for easy propeller installation
Multi-strand winding design for better thermal performance
270mm 18AWG silicone wire for flexible wiring
Four KV options to match different battery and propeller setups
Specifications
Item
800KV
900KV
1050KV
1200KV
Motor Dimensions
Φ39.1×45.8mm
Φ39.1×45.8mm
Φ39.1×45.8mm
Φ39.1×45.8mm
Framework
12N14P
12N14P
12N14P
12N14P
Bearing Shaft
6mm
6mm
6mm
6mm
Weight (With wire)
99g
99g
99g
99g
Lead
18#AWG, 270mm
18#AWG, 270mm
18#AWG, 270mm
18#AWG, 270mm
No. of cells
6–8S
6–8S
6S
6S
Propeller
8"–10"
8"–9"
8"–9"
8"
Idle Current (10V)
1.5A
1.6A
1.9A
2.4A
Internal Resistance
58mΩ
52mΩ
41mΩ
35mΩ
Peak Current (6S)
59.4A
70.5A
77.9A
88.6A
Max. Power (6S)
1449W
2208W
1893W
2135W
Prop adapter shaft thread
M5 CW
M5 CW
M5 CW
M5 CW
Hole pattern
1919mm, 4M3
1919mm, 4M3
1919mm, 4M3
1919mm, 4M3

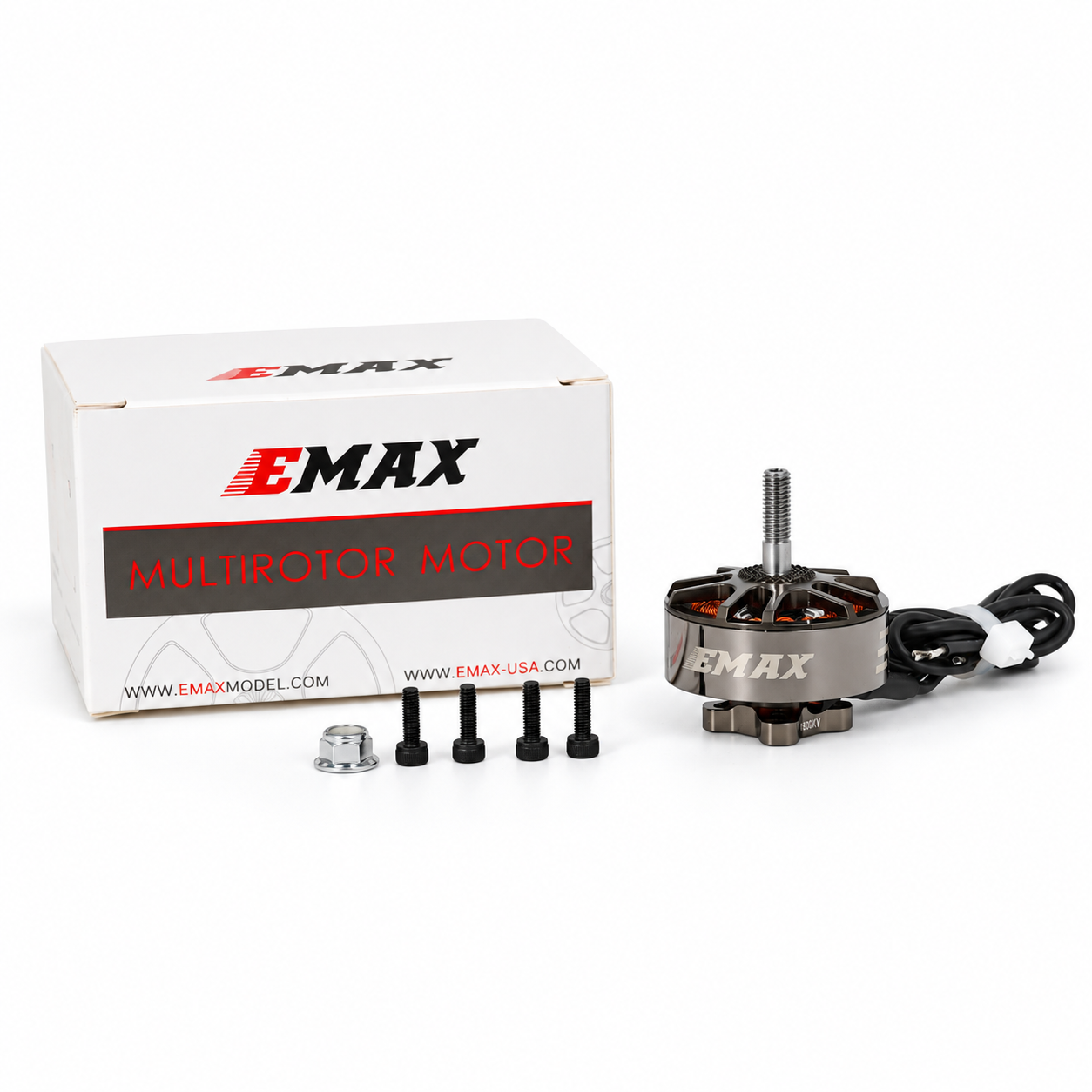

Package List
1 × ECOII-3210 Brushless Motor
4 × M3*10 Screws
1 × Aluminum M5 nylock nut
FAQ
Q: How do I pick the correct KV?
A: Lower KV (800KV / 900KV) works with larger propellers and supports 6–8S LiPo. 1050KV / 1200KV are for 6S setups with snappier response and smaller props. Match the KV to your airframe, battery and propeller.
Q: Can I reverse the motor rotation?
A: The shaft comes with CW thread by default. Swap any two ESC wires to reverse rotation.
Q: Is the max power continuous power?
A: The listed max power is peak power tested under 6S. It is short‑term data. Do not run the motor continuously at peak load.
Q: What should I note during installation?
A: Mount the motor with the included M3 screws. Secure the propeller with the M5 nylock nut. Always check prop tightness before flight.
Q: Can I use this motor after water exposure?
A: This motor is not waterproof. If it gets wet, disassemble, clean and fully dry it. Inspect bearings and windings before flying again.
