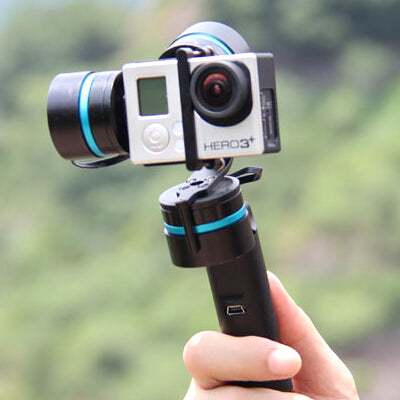

Feiyu Tech FY-G3 Ultra 3 Axis Handheld Steady Camera Gimbal For Gopro 3 Gopro 3+

Specification

Specification

How To Use The Button

Specification

Identify the operation mode via switch to different status of the indicator light.Please check detailed indicator diagram below:

Specification

Operation Skill:
The Skills Of Adjusting Pitch: Double click the button first to be in heading and pitch following mode. Adjust the attitude to move the pitch to the angle you want , then press the button once to lock the angle of pitch being in the heading following mode .
Autodyne Mode: Trun 180 degree of the gimbal(the USB port facing you). Adjust the angle of pitching through the method above, then you can autodyne easily.

Specification

Specification

Description:
Brand name: Feiyu Tecg
Item name: FY-G3 Ultra 3 Axis Handheld Gimbal
Gyro: 3 axis
Color: Black

	Minimum	Standard	Max.	Remark
Work voltage	7.0V	12.0V	17.0V
Static altitude follow precision	0.01	0.02	0.05	Static
Motion altitude follow precision	0.1	0.2	0.5	Overmotion<2G
Motor overload protection current		800MA
Pitch angle range	-100(down)	0(horizontal)	35
Roll angle range	-45	0(horizontal)	45
Navigation angle motion range	-150(L)		150	Vertical handle
Navigation angle motion range	-50		50	Horizontal handle
Pitch follow speed ratio	2°/s		50°/s
Navigation follow speed ratio	3°/s		150°/s
Weight		305g		battery,camera not included

Features:
● Heading Following Mode: Pitch and roll locking, heading smooth rotation follow the direction of the handheld.
● Heading And Pitch Following Mode: Roll locking ,heading and pitch smooth rotation follow the direction of the handheld.
● Locking Mode: Heading ,pitch and roll locking.

Package Included:
1 x FY-G3 Tech Ultra 3 Axis Handheld Gimbal

★FY-G3 Ultra 3 Axis Handheld Steady Camera Gimbal For Gopro 3 10700030
